laser fume dust extractor

Laser Fume Dust Extractor

Apzem’s Laser Fume Dust Extractors ( ALF4010 ) are specially designed high tech extractors catering the needs of heavy duty metal and non metal Laser marking, Laser Engraving, cutting & welding applications.

Apzem laser fume and dust extraction system is compact and highly productive. Laser fume extraction has quiet operation, convenient mobility and high efficiency. Portable laser fume extractor is used to control the chemical fumes and it can be easily moved.

Product Catalog Send Enquiry

Categories: ,

Share this product



Laser Fume Dust Extractor

Laser Fume Dust Extractor ALF4010 are specially designed high tech extractors that cater the needs of heavy-duty metal and non-metal dust and fumes extract during Laser marking, Laser Engraving, Laser Cutting and welding application. The three stages of filtration process used in laser fume extraction are Pre filter, heap filter and activated carbon filter.  Fume extractor for laser cutting will absorb the fumes from various processes with high filtration media. The Fume Extractor for laser etch is used to absorb the chemical fumes during the etching process.

Laser Fume Dust Extractor

Unique Features

  • Low noise design
  • Heavy Duty Construction
  • Portable and Compact design
  • Digitized Control
  • Three stage Filtration
  • Feather Touch Controls
  • Easy filter replacement
  • Filter Choke Alarm Indication
  • Secure Lock Operation
  • Dual start mode ( Auto / Manual )

Optional Features

  • Remote start stop
  • VOC / Gas Sensor
  • Filter choking alarm indicator
  • Stainless Steel Construction
  • Remote Start / Stop interfacing module with Laser machine
  • Medium to Heavy duty

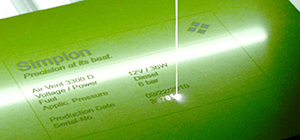

  • Laser Marking

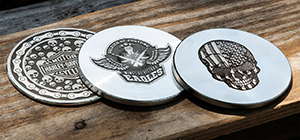

  • Laser Engraving
  • Laser Cutting

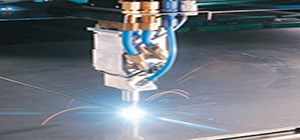

  • Laser Welding

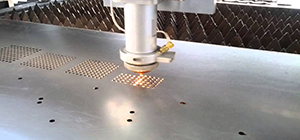

  • Laser Drilling etc..
Basic Details ALF4010
Rated air flow (CMH/CFM) 375/220
Vacuum (max) 10kpa
Overall dimensions (LxWxH) 550 x 550 x 1050 mm
MOC Plain carbon steel
Machine weight 90kg
Finish Powder coated
Power 1.2 kW
Input Supply single phase , 230V AC , 50/60Hz
Cord length 3mtrs
Noise level <72 dB
Inlet size 100 / 50 mm
Efficiency 99.99% @ 0.3 microns
Filter details Stages of filtration
Hepa Filter
Activated Carbon Filter
Filter choke Indication Yes. (visual & alarm indication)

ALF4010-01          ESD Arm With Arm Adapter
ALF4010-02          Non-ESD Arm With Arm Adapter
ALF4010-03          Table Mount And ESD Arm
ALF4010-04          Table Mount And Non-ESD Arm
ALF4010-05          4” Flexible Hose
ALF4010-06          Custom Hood
ALF4010-07          18 Joints Extraction Arm with capturing hood and slide gate
ALF4010-08          Pre Cyclone Collector
ALF4010-09          Spark Arrestor
