Product Details

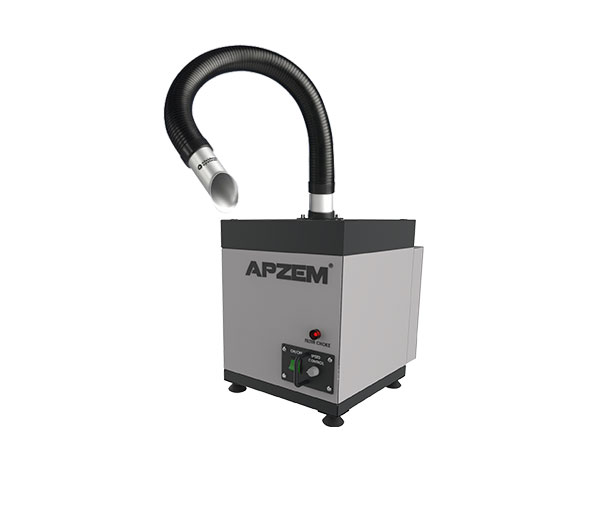

Compact Dust Collector
Apzem’s Compact Dust Collector is specially designed for dust and fume extraction for variety of industrial applications. One of its main advantage is its size. It can be easily placed inside any 20’’ inserts. The dust particles are captured at the source and goes through two stages of filtration. It is a an effective and economical solution for source capturing of dust particles.
Product Catalogue Send Enquiry
Description
Compact Dust Collector
Compact Dust Collector – With 5yr Warranty & CE Certified
Designed to perform with 99.97% efficiency, this compact dust collectors comes with optimum suction capacity and versatile design. It comes with two stage filtration and its lightweight and easily portable. This compact dust collectors requires very low maintenance.
High Efficiency and Reliable
Optimum Suction Capacity 115CFM
99.97% Capturing Efficiency
Compact, Lightweight and easily portable
Versatile Design
Small and Very Compact
Low Maintenance Operation
Fully Rugged Metal Construction
Filter Choke Indication
Medium duty Laser Marking & Engraving
Mild Metal Marking
Laser Etching
Dental
3D Printing
SLS Printing
Additive Manufacturing
Cosmetics & Skin Care Product Manufacturing
| MODEL NO. | CDC80 |
| Rated air flow (CMH/CFM) | 195 / 115 |
| Volume(Max) | 10kpa |
| Overall dimensions (LxWxH) | 300 x 390 x 440 mm |
| MOC | Plain carbon steel |
| Machine weight | 15kg |
| Finish | Powder coated |
| Power | 1.2kW |
| Input Supply | Single phase , 230V AC , 50Hz |
| Cord length | 3mtrs |
| Noise level | < 80dB |
| Efficiency | 99.99% @ 0.3 microns |
| Inlet size | 50 mm |
| Filter details
Stages of Filtration |
Pre-Filter
Hepa Filter |
| Filter Choke Indication | Yes ( Visual Indication ) |
